Now available .2 mm pitch and up.

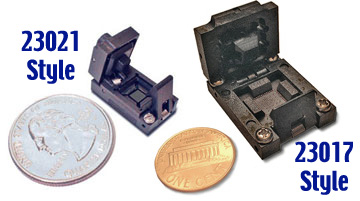

1GHZ or less = DATA SHEET # 23021.pdf

Over 1GHZ up to 18.5GHz = DATA SHEET # 24013.pdf

Features:
For Test & Burn-In of CSP, MicroBGA, DSP, LGA, SRAM, DRAM and Flash Devices. Consult factory for QFP applications.
Any pitch device on 0.20mm pitch or higher.
Socket is easily mounted and removed to & from the BIB due to solderless pressure mount compression spring probes which, are accurately located by two molded plastic alignment pins and mounted with two stainless steel screws.
The gold over nickel plated compression spring probes leave very small witness marks on the bottom surface of the device solderballs.
Small overall socket size/profile allows maximum number of sockets per BIB and BIBs per oven, while being operator friendly.
Standard molded socket format can accommodate any device package of 6.5mm or smaller, by using machined (for small quantities) or custom molded (for large quantities) pressure pads and interposers.
Pressure pad compression spring provides proper force against device and allows for height variations in device thickness.
4 Point crown insures scrub on solder oxides.
Signal path during test only 0.077" (1.92mm)
General Specifications:
Molded socket components are UL94V-0 Ultem.
Machined socket components are UL94V-0 PEEK or Torlon.
All hardware is stainless steel.
Compression spring probes are heat treated Beryllium Copper Alloy.
Compression spring probe plating is 30u" min.[0.75um] Gold per Mil-G-45204 over 30u" min. [0.75um] Nickel per SAE-AMSQQ- N-290.
Durability=500,000 cycles min.
Contact Force = 16g per contact on 0.40mm pitch; = 25g per contact on 0.50 - 0.75mm = 25g per contact on 0.80mm pitch or larger
Operating Temperature = -55°C (min.) to 150°C (max.); -67°F (min.) to 302°F (max.).
Typical Average Burn-In Temperature = 150°C Max.
Mounting Considerations:
See PCB FOOTPRINT TOP VIEW for requirements.
Requires two (2) #0-80 screws and PEM nuts for mounting (not supplied). Mounting holes size shown may differ depending on PEM nut selected.
Sockets must be handled with care when mounting or removing sockets to/from BIB to avoid damaging sensitive spring contacts.
Test board PCB dia.: = .025 (0.635mm) (large probe = 0.80mm pitch & larger) = .015 (0.381mm) (small probe = 0.50mm - 0.75mm pitch) = .012 (0.300mm) (small probe = 0.40mm pitch)
Note: Aries specializes in custom design and production.  In addition to the standard products shown on this page, special materials, platings, sizes, and configurations can be furnished, depending on quantities.  Aries reserves the right to change product specifications without notice.
