Chip Scale Test Socket Test & Burn-In of CSP, MicroBGA, QFN, DSP, LGA, SRAM, DRAM, PQFP, Flash Devices, etc. Any SMT Device! Now available .2mm pitch and up, Spring Probe Test Sockets From Under 1GHz, to 18.5 Ghz

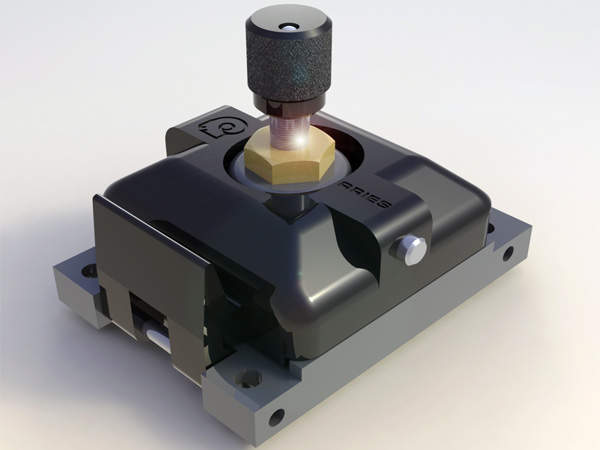

The ADJUSTABLE Chip Scale Test Socket: Freedom of Range for different device thickness options, or device fragility.
Socket for up to 27 mm size devices shown.

Roll over small image to load large image

Sockets for up to 13 mm size devices shown
For prototypes of a chip under development that will always have the same footprint, but may have the thickness of the package vary until the design is firmed up, or have a requirement to apply minimum force, and no more, such as with fragile ceramic chips or very thin devices.

Aries has developed a way of making the depth of the pressure pad adjustable, using a micrometer adjustment. This ability to incrementally add force to achieve a good connection without fear of cracking or bending a fragile device, such as a ceramic chip or a thin device, or when dealing with variable thickness issues, is a great way to only apply the minimum force to get the connection and no more.
