Model 902 Burn-in Board Loader and Unloader Handler Transfer Machine,Exatron Burn-in board-loader unloader Handler IC Transfer machine


The Exatron Model 902 Burn-in Board Loader / Unloader. transfer handler machine system is designed for fast, efficient transfer of devices from JEDEC trays to burn-in boards and back again. Featuring a unique pickup head which opens/closes sockets as devices are picked/placed; an easily removable burn-in board tray; robust automation software; and quick and easy changeover; the BIB system is an essential tool for burn-in board test operations.

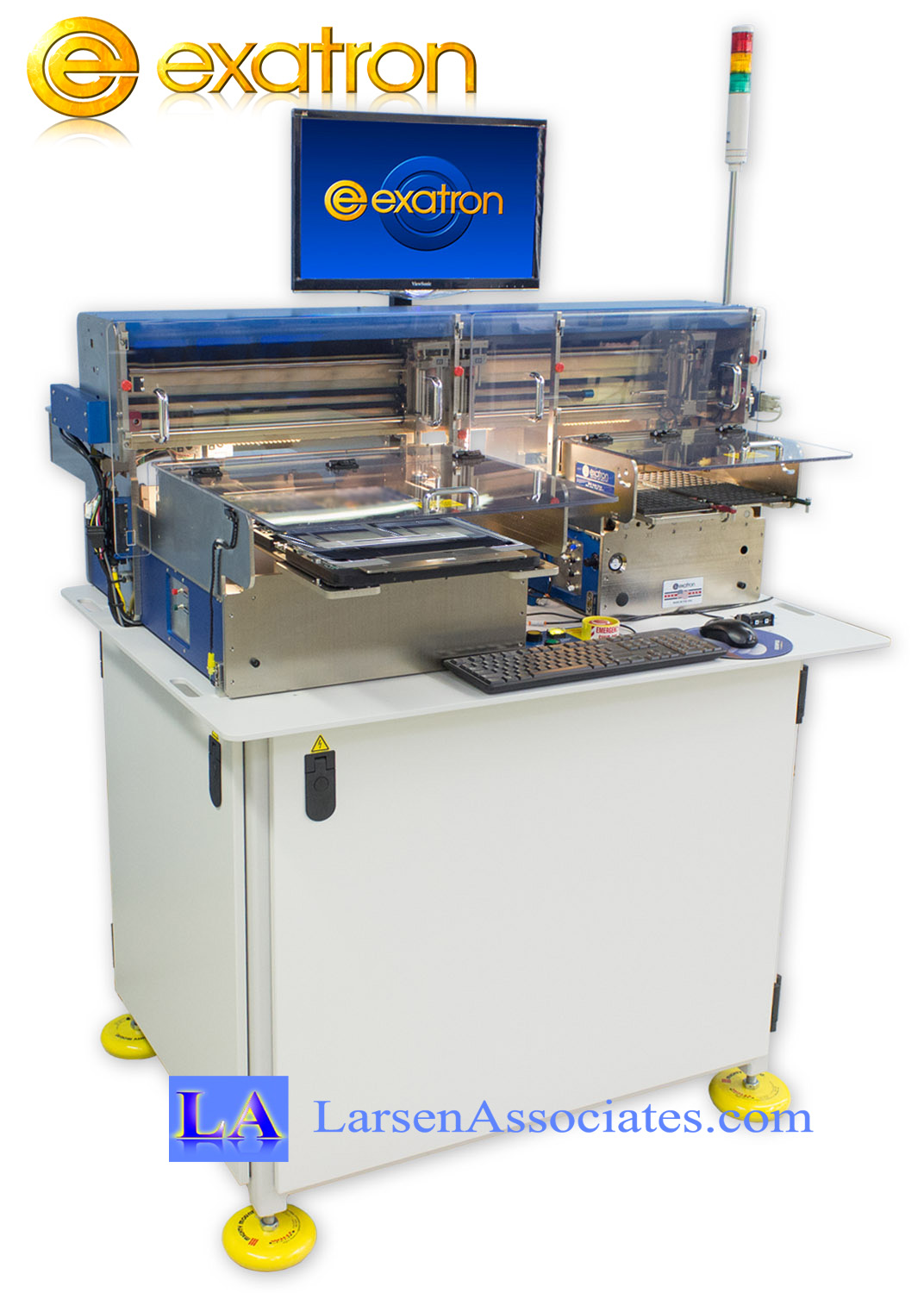

SYSTEM FEATURES (as shown):

Easily removable Burn-in Board. BIB carriage changes over in less than a minute.
Bus Stop transfer station precises devices and increases production speed.
One rotating pickup head and one socket opening/closing pickup head.
Two JEDEC tray, input/output as needed.
Virtually "kit-less"
-Quick and easy changeover of bust stop and pickup heads.
Robust automation software, generated in-house at Exatron, offers extensive diagnostics and control.
-Defective socket tracking software optional.
Vision options available:
-Device presence/Pin1 rotation.
-BIB 1D/2D bar code reader and ID software.
Windows 7 operator GUI.
Fully enclosed on all sides, doors electrically and mechanically locked.
Heavy duty welded steel frame.
CE marked. RoHS compliant. Meets all ESD requirements.
System designed, manufactured, and built in San Jose, CA.
Multiple input/output, test, and other options

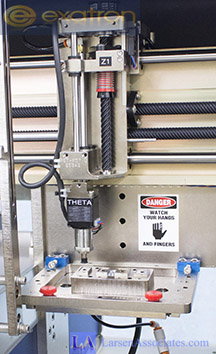

Rotating Pick-up Head Loader Unloader Transfer Machine IC Handler
Loader UnLoader Burn-in board transfer machine head Exatron

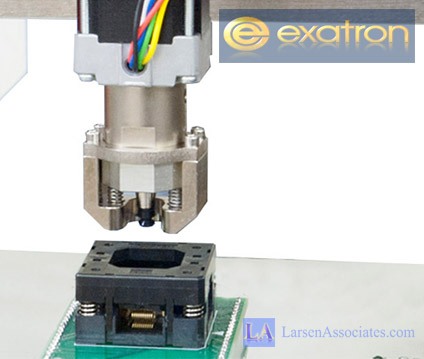

Pick-Up HeadLoader Unloader IC Transfer handler pick up head


POSITIONING SYSTEM:

X-Y Drive System Servo motor-driven lead screws
X-Y Axis Resolution: 0.1mm (0.003")
X-Y Axis Max. Velocity: 122cm/s (48"/s)
Z Plunger: Servo motor-driven lead screws
Z Axis Resolution: +/-0.1mm (0.003")
Z Axis Repeatability: +/-0.1mm (0.003")
Placement Force: Up to 10kg (20lbs) force with standard pickup heads
Theta Drive System: Precision stepper motors
Theta Axis Resolution: 0.1°
Theta Axis Repeatability: +/-0.1mm (0.003")
SPECIFICATIONS:

Power: 100-240VAC 50/60Hz @ 240 Watts
Air: 5.9 bar (85 PSI) @ 3 CFM clean, dry air
Operational Temp. 13-32°C (55-90°F)
Humidity: 35-90% RH non-condensing


SPECIFICATIONS:

Power: 100-240VAC 50/60Hz @ 240 Watts
Air: 5.9 bar (85 PSI) @ 3 CFM clean, dry air
Operational Temp. 13-32°C (55-90°F)
Humidity: 35-90% RH non-condensing
