| ARIES REVOLUTIONARY-- COST-EFFECTIVE -- SIDE-STACKABLE -- BGA LGA SOCKET | ||
 |
||
|
ARIES REVOLUTIONARY, COST-EFFECTIVE SIDE-STACKABLE BGA LGA SOCKET

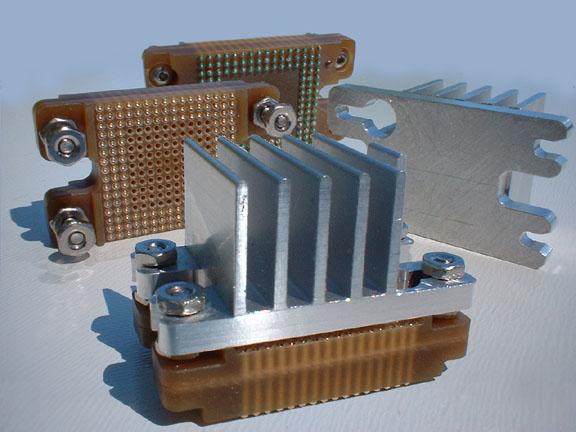

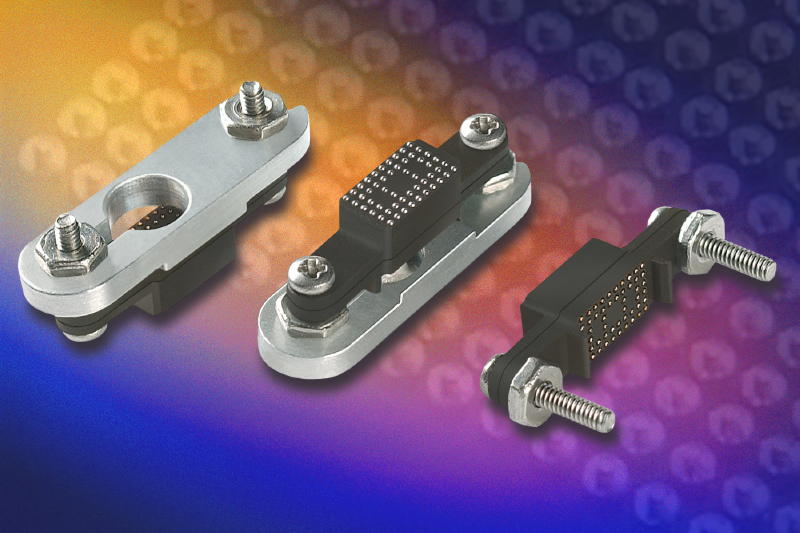

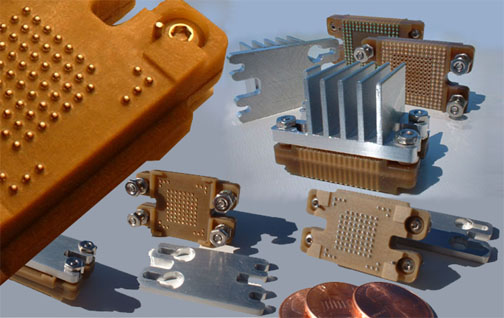

The first side-stackable BGA socket available on the market. The Pin-Ball Socket, can be soldered side-by-side, directly to the existing footprint of a PC board, dramatically improving packaging density. The surface mount BGA and LGA socket provides 2 mm of clearance for end components and can be used for 1.00 mm and 1.27 mm pitch packages up to 50 mm in any footprint and on any size board. The Pin-Ball Socket incorporates AriesŐ reliable spring probe technology, with a spring force of 17 grams at .025" deflection. The new socket employs an Ultem insulator with stainless steel hardware. The spring is BeCu alloy and the pins are gold-plated brass alloy. Users have the choice of a metal cover or customized aluminum heatsink. The socket is available in 2-bolt (15mm package or smaller) or 4-bolt (16—50mm package) hold-down styles, depending upon the device size required. Pricing for the Pin-Ball Socket starts at $1.00 per ball in quantities of 5 sockets. Delivery is 2 weeks ARO. Pin Ball DATA SHEET: Click Here
|
 |
