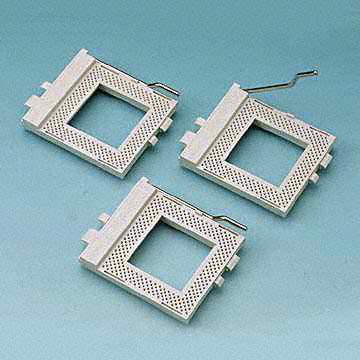

702 Series:  Socket 7

(For PC µProcessors)

0704 Series:  Socket 370

(For PC µProcessors)

Key Specifications/Special Features

Material and finish:

Insulator: Liquid crystal polymer (LCP) UL94V-O rated
Contact: Beryllium copper (BeCu) Special Order only; Phosphor bronze (PhBz)
Finish: Contact area, gold over nickel; solder tail, tin/lead over nickel
Actuator handle: Stainless steel, polished

Performance characteristics:

Pin retention force: 15 grams min per contact (closed position); O grams (open position)
Current rating: 1 Amp max
Insulation resistance: 5000 megohms min
Contact resistance: 15 milliohms max (initial); 25 milliohms max (final)
Dielectric withstanding voltage: 1000 Vrms for 1 minute
Operating temperature : -55 ~ +125 degrees C
Capacitance: 1 Picofarad max
Inductance: 2nh @ 1 Mhz Typ

Part Numbering:

Socket 7: 0702 -- UX -- 321 -- 37 -- YY -- P

Socket 370: 0704 -- UX -- 370 -- 37 -- YY -- P

YY----------02: Au Flash
15: 15µ" Au over Ni
30: 30µ" Au over Ni
90: Au Flash over 15µ" PdNi

CLICK HERE for PDF Drawing Socket 7

CLICK HERE for PDF Drawing Socket 370
