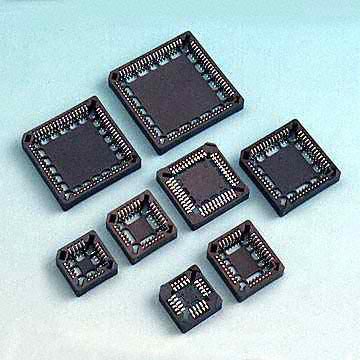

0901 Series: PLCC Sockets

(For SMT Applications)

Key Specifications/Special Features

Material and finish:


Insulator: PPS/brown or LCP/white
Contact: Phosphor bronze
Finish: Tin/Lead plated

Performance characteristics:


Contact resistance: 30 milliohms max
Insulation resistance: 1000 megohms min
Dielectric strength: 1000 Vac continuous for one minute
Capacitance: Less than 1.0 pF at 1000Hz
Inductance self/mutual: 5.0 nH, maximum at 500KHz 1.0nH, maximum at 500 KHz
Operating temperature : PPS / -55 ~ 125 degrees C LCP / -55 ~ 230 degrees C
Low profile design: only 0.175 "high body visual window for solder joint inspection board"
Standoff for easy cleaning; Simple hand-tool available for chip carrier removal with "J" Lead on 0.05"(1.27) centers high temperature plastic to resist solder Heat polarized for correct orientation
Available in 20, 28, 32, 44, 52, 68, 84 positions

Part Numbering

**Sizes Available: 20, 28, 32, 44, 52, 68, 84**

XXXX -- YYY -- Z -- N



XXXX----0901 Series Number

YYY--------020--84 # of positions

Z------------P: PPS insulator

L: LCP insulator

N-----------Blank: Without Polarization Peg

P: Polarization Peg for SMT alignment

CLICK HERE for PDF Drawing
