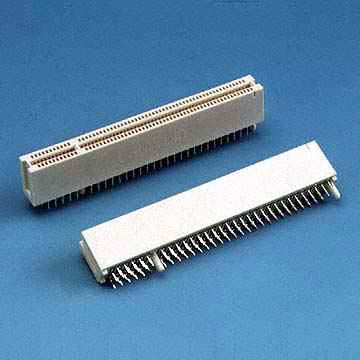

0204 Series: PCI Card-Edge Connectors
Key Specifications / Special Features
Material:
* Insulator: Thermoplastic (PPS ) UL94V-O rated
* Contact: Phosphor bronze
* Finish: Contact area, gold over nickel; solder tail, tin/lead over nickel
Performance characteristics:
* Contact resistance: 30 milliohms max
* Insulation resistance: 1000 megohms min at 500 VAC
* Current rating: 1 Amp
* Withstanding voltage: 500 VAC min one minute
* Operating temperature: - 55 ~ +120
degrees C
Part Numbering
XXXX -- YYY -- ZZ
XXXX----0204 Series Number
YYY--------120 # of positions
ZZ---------- 02: gold flash
05: 5µ" Au over Ni
10: 10µ" Au over Ni
30: 30µ" Au over Ni
